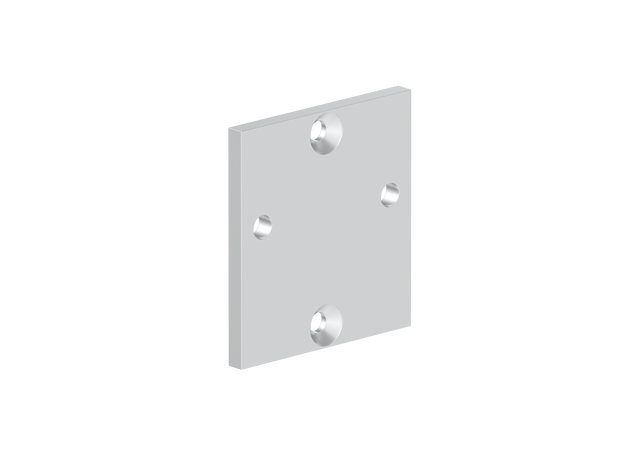

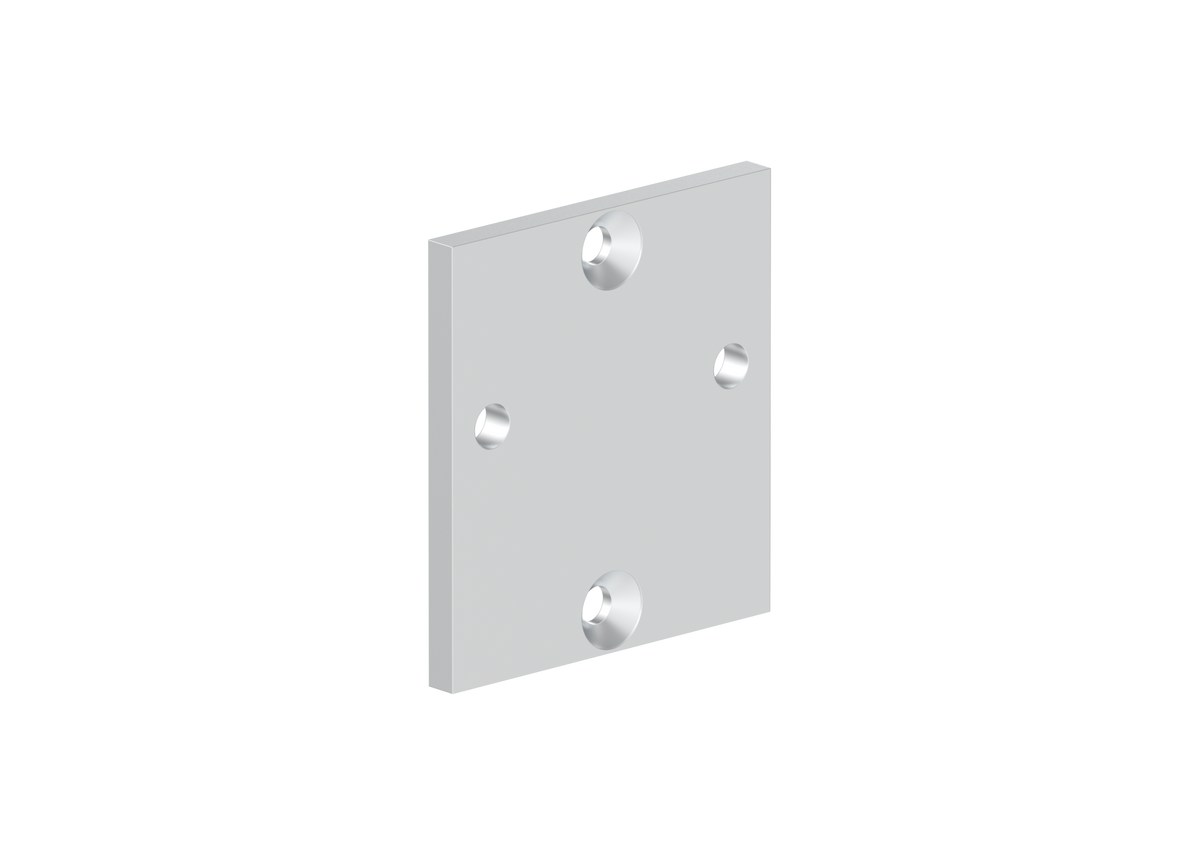

Aluminium Anchoring Plate for Profile/Post 56x60
Description
Aluminium anchor plate for profile/post 56×60 mm
Product Code: FG/BKP120x130x10-N
Material
• High-quality aluminium EN AW-6063 T6.
• High resistance to corrosion and weather conditions.
Surface Finish
• Natural.

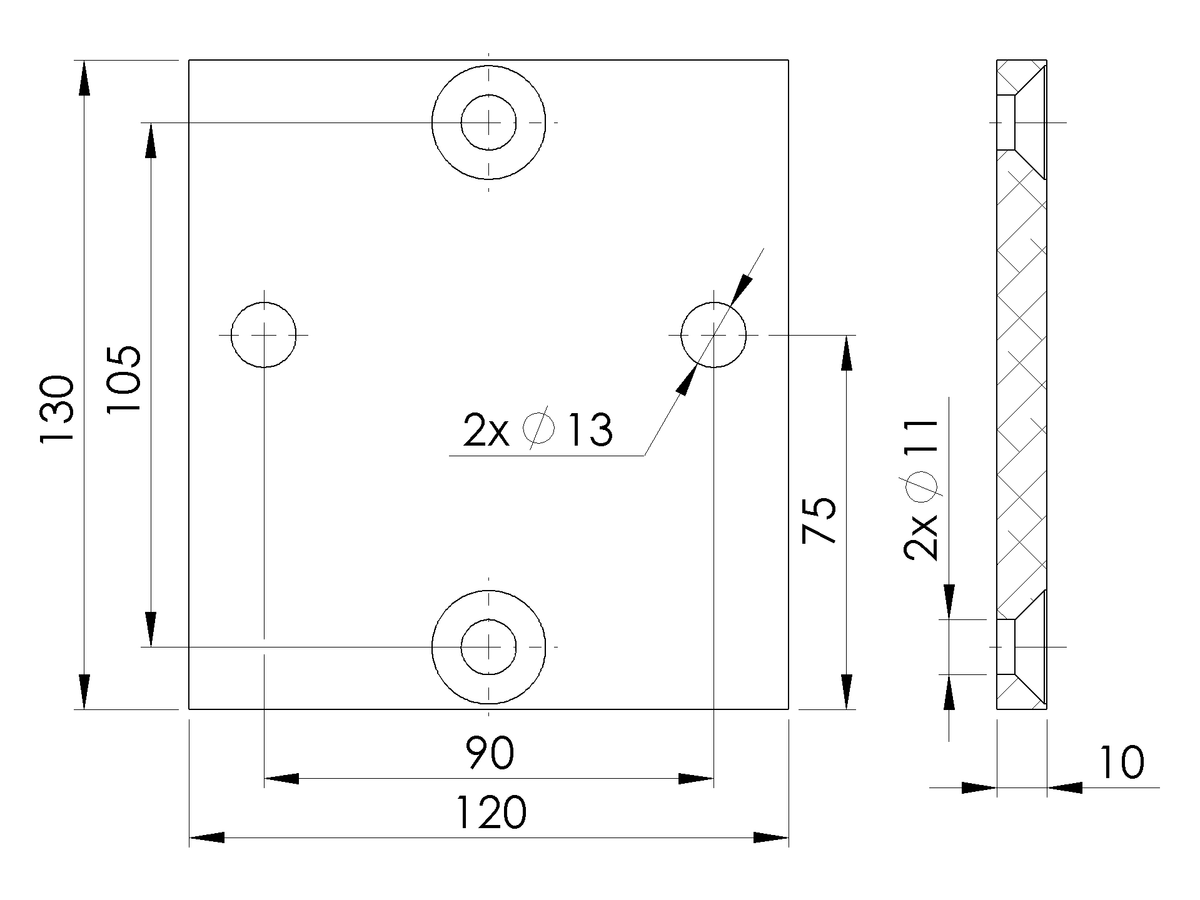

Dimensions
• Plate: 120×130×10 mm.
• Designed for profile/post FG/FP56x60...
Installation and Compatibility
• Easy and secure installation on concrete base or foundation footing.
• Designed for secure anchoring of aluminium profiles (product code FG/FP56x60...).
• Attached to the post using three screws (product code A-DIN 7991-A2 M8x35).
• Anchored to the concrete base using two threaded rods (product code A-DIN 975 M10-200), two washers (product code A-DIN 125-A2 M10) and two cap nuts (product code A-DIN 1587-A2 M10).
• Compatibility with aluminium profiles and accessories (cover strips, end profiles).
• Accessories: stainless steel screws and stainless steel fasteners A2.
Advantages
• High stability and strength of post anchoring.
• Long lifespan and resistance to weather conditions.
• Quick and easy installation, saving time and costs.
Parameters
