Aluminium Post Set 56×60 - 1m, top mounting with covers, intermedia...
Description

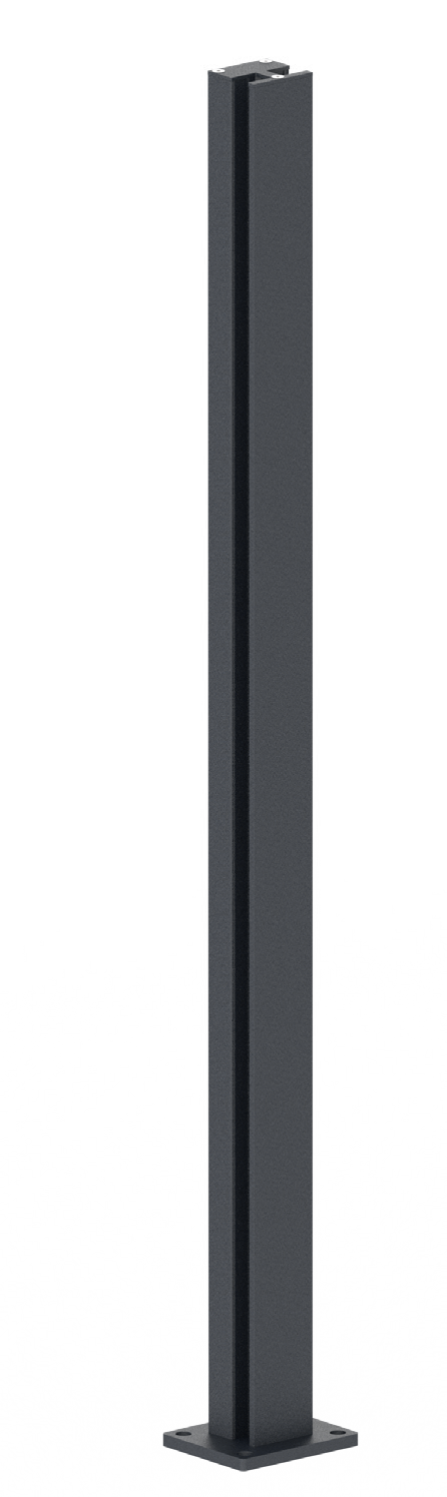

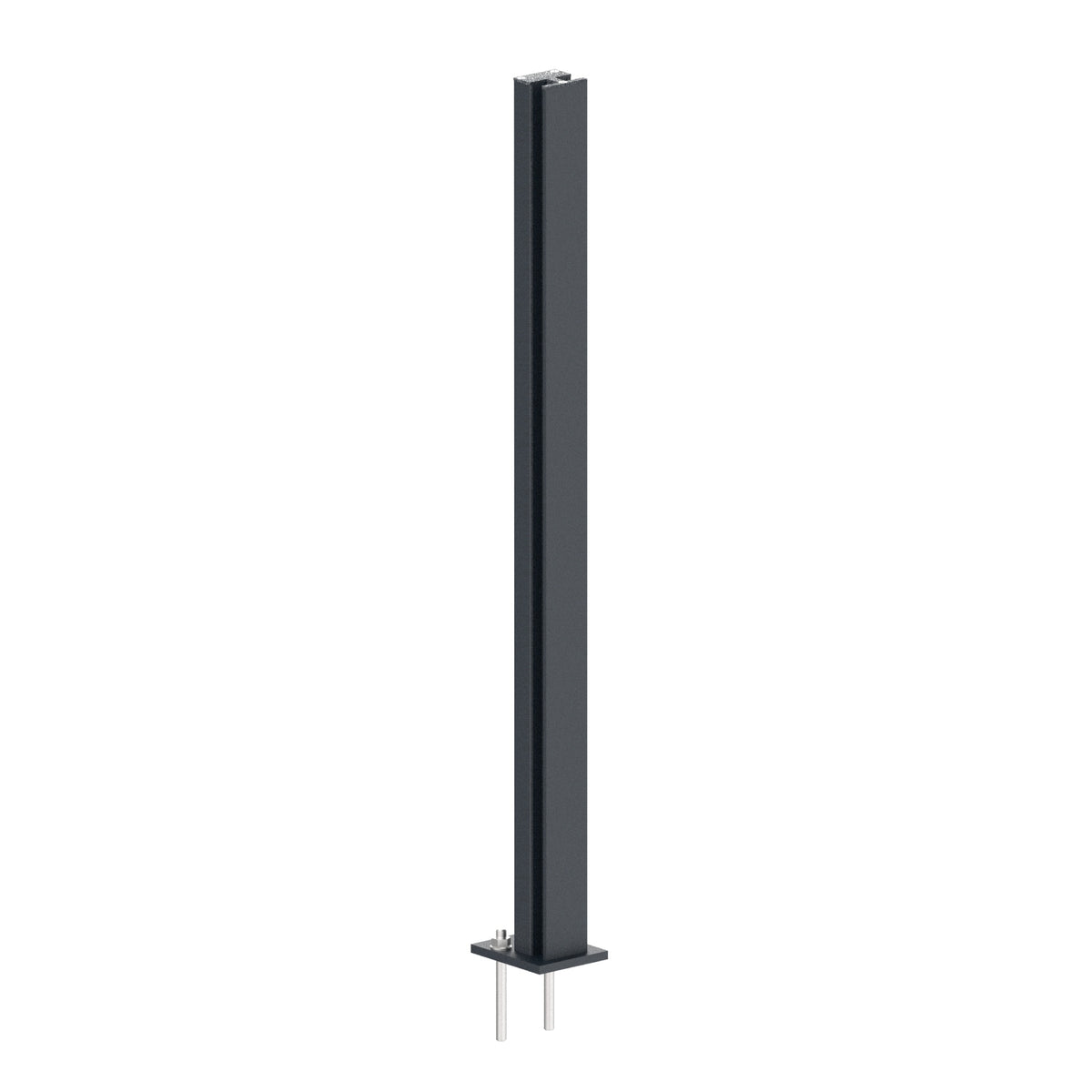

Aluminium Post Set 56×60 - 1 m, top mounting with covers, intermediate – Anthracite RAL 7016
Product Code: AL/56x60-VK1001-017-R7016
Material
Extruded aluminium EN AW-6063-T6.
High resistance to corrosion and weathering.
Surface Finish
Powder coating with a fine texture in Anthracite RAL 7016.
Modern matte appearance and long-term color stability.

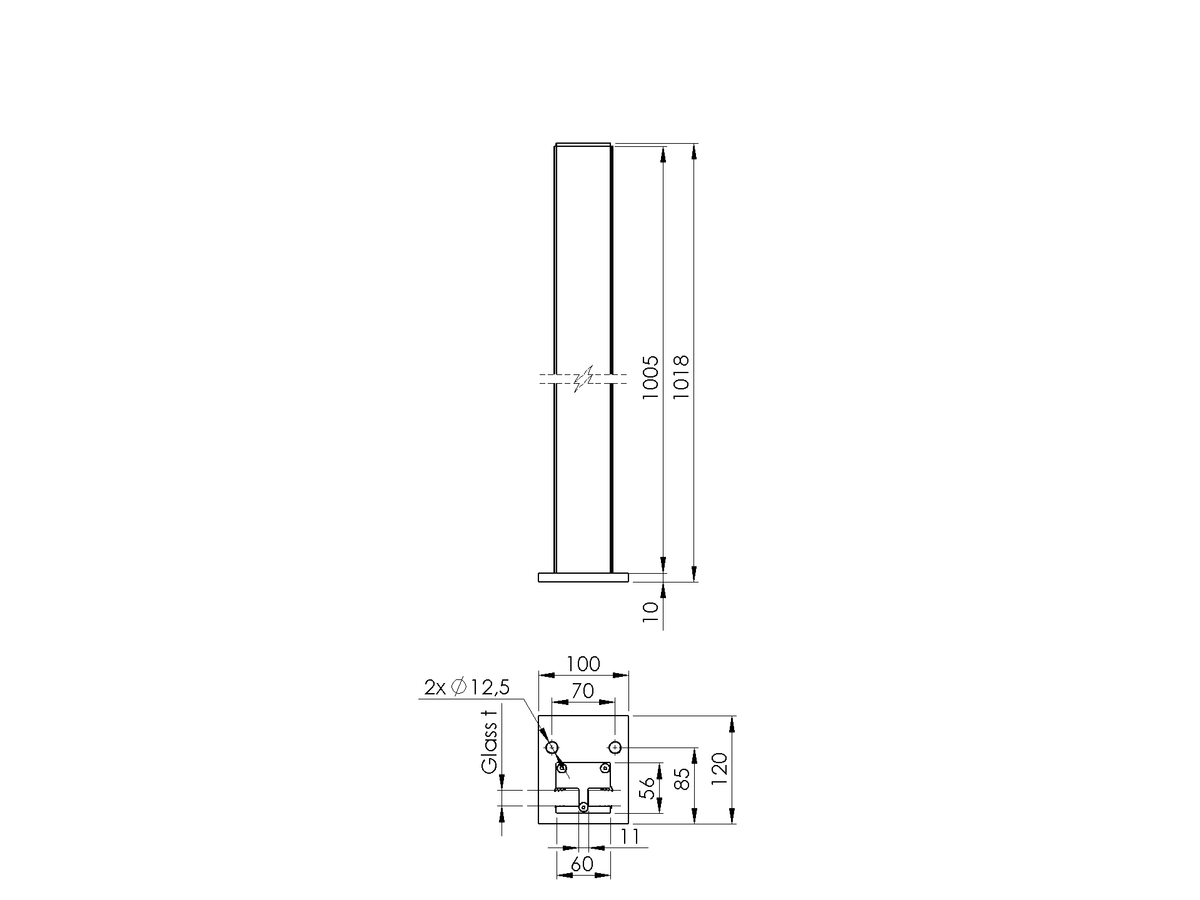

Dimensions
Post cross-section: 56×60 mm.
Post length: 1000 mm (1 m).
Installation and Compatibility
Screwed mounting system – quick installation without welding.
Easy disassembly and replacement of individual parts for modifications or damage.

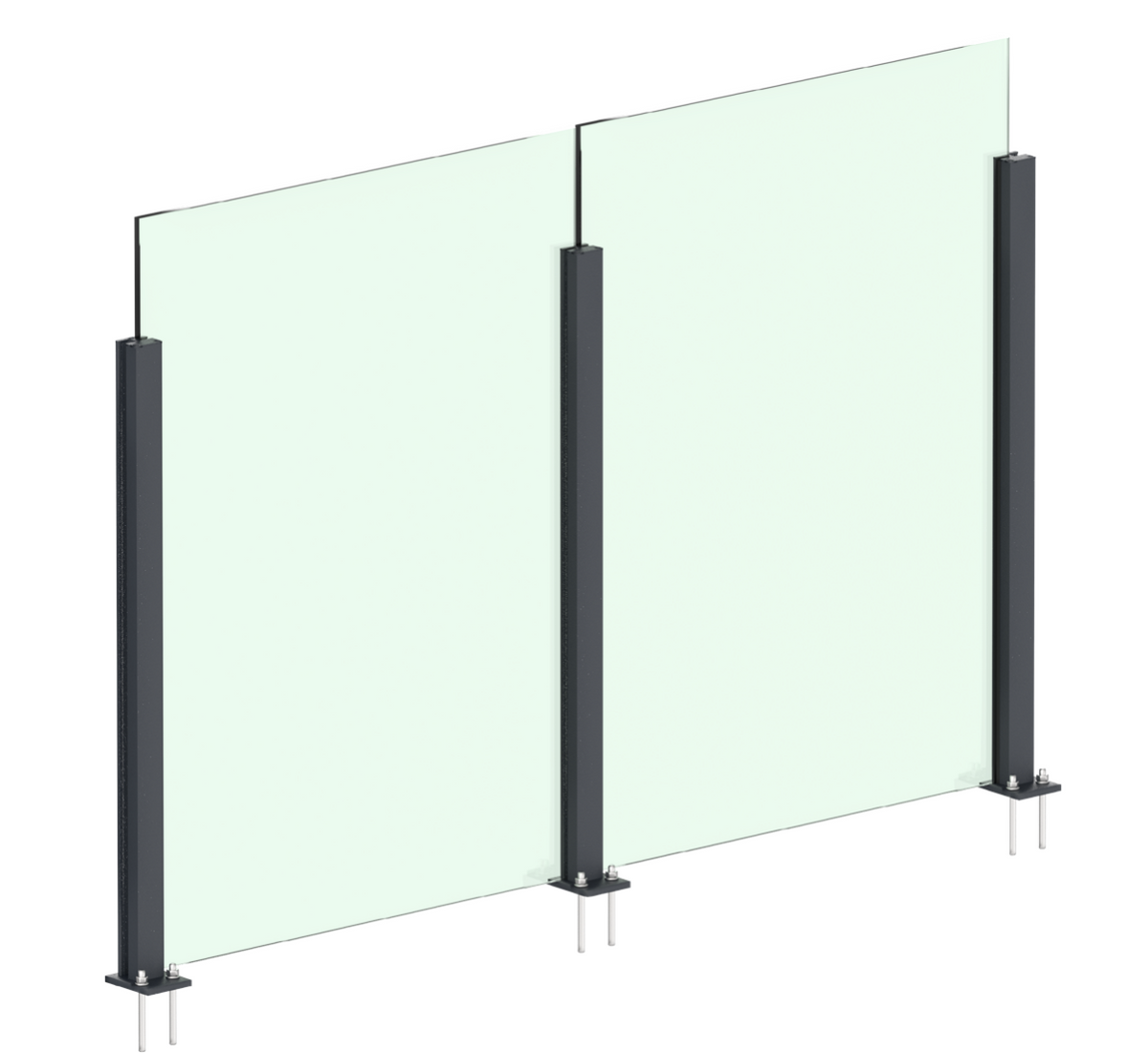

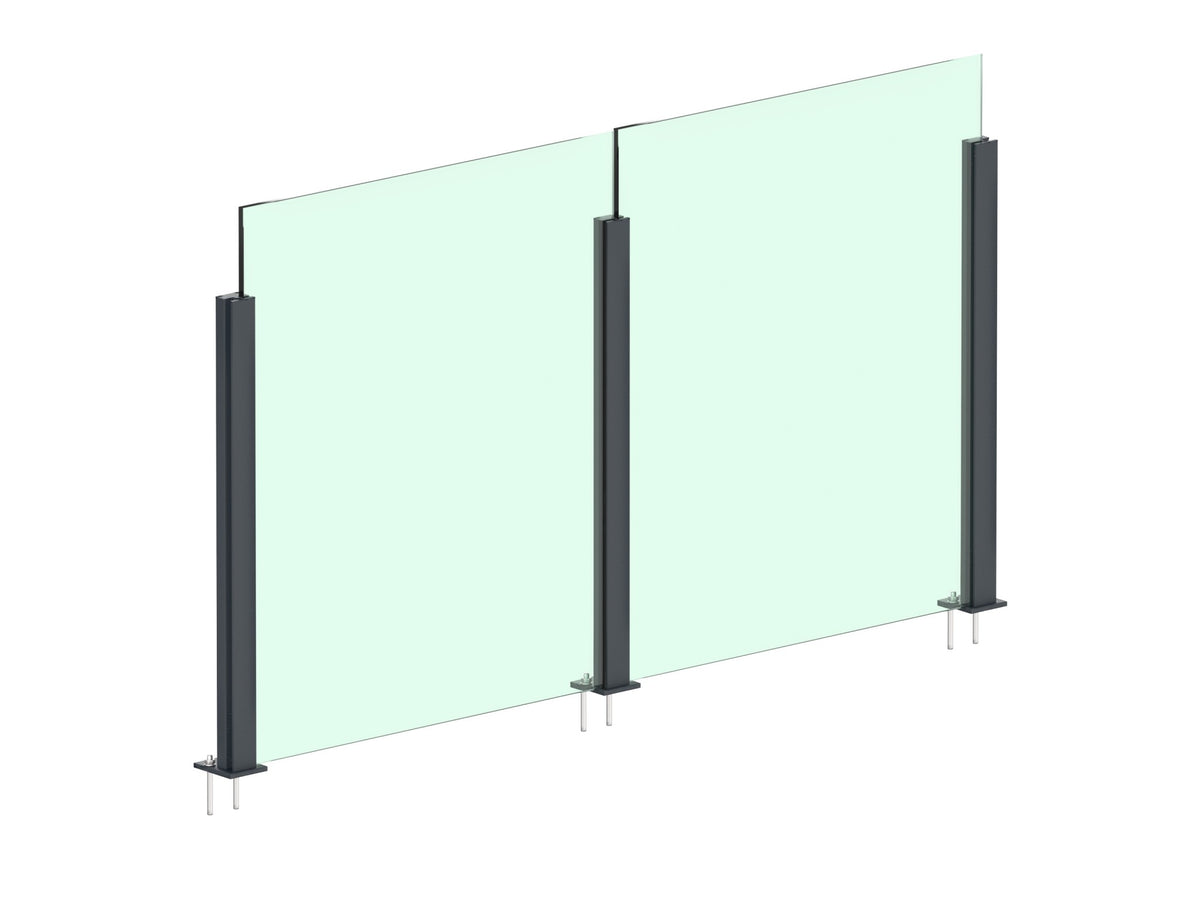

The set is designed for glass railings, an intermediate post. The top mounting of the 56×60 mm aluminum profile (product code FG/FP56x60-VK1005-R7016) is carried out using a stainless steel anchoring plate/flange (product code FG/BP120x100x10-R7016), with an intermediate cover (product code FG/CPD56x60-R7016), fasteners, and a rubber gasket for 16.76 mm glass.
The intermediate design is intended for guiding the glass infill in a single line. An intermediate cover (product code FG/CPD56x60-R7016) is used to cover the profile.
The set can also be used an end post. In this case, the intermediate cover (product code FG/CPD56x60-R7016) is replaced by an end cover (product code FG/CPS56x60-R7016) and supplemented with a click-lock cover strip (product code FG/PC20x9...).
Using a rubber gasket (product code A19/5660-017-M), it is possible to anchor glass of thickness 8.8.2 (16.76 mm), (product code GS/16,76...).
Installation Manual – Aluminium Post 56×60 mm

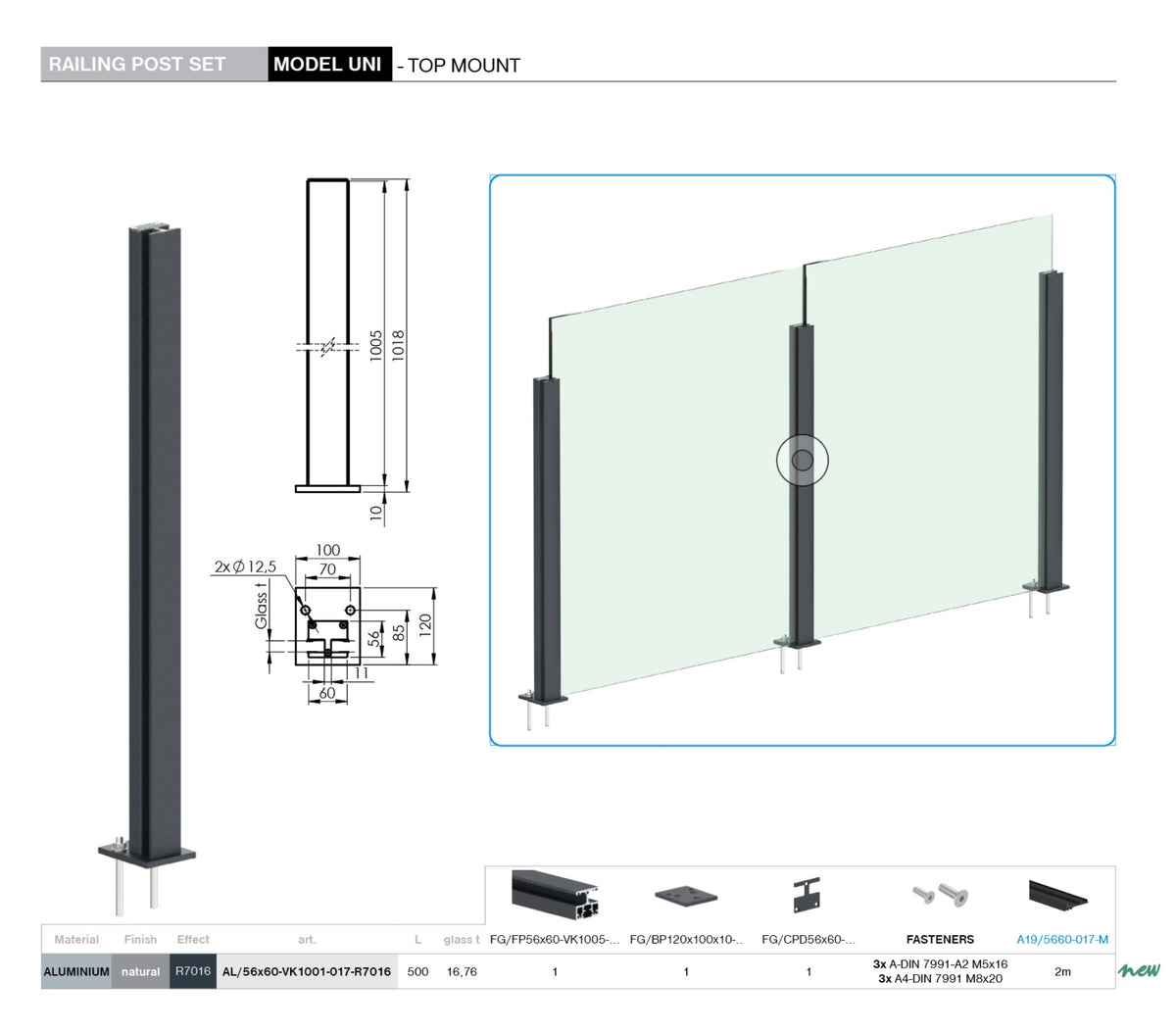

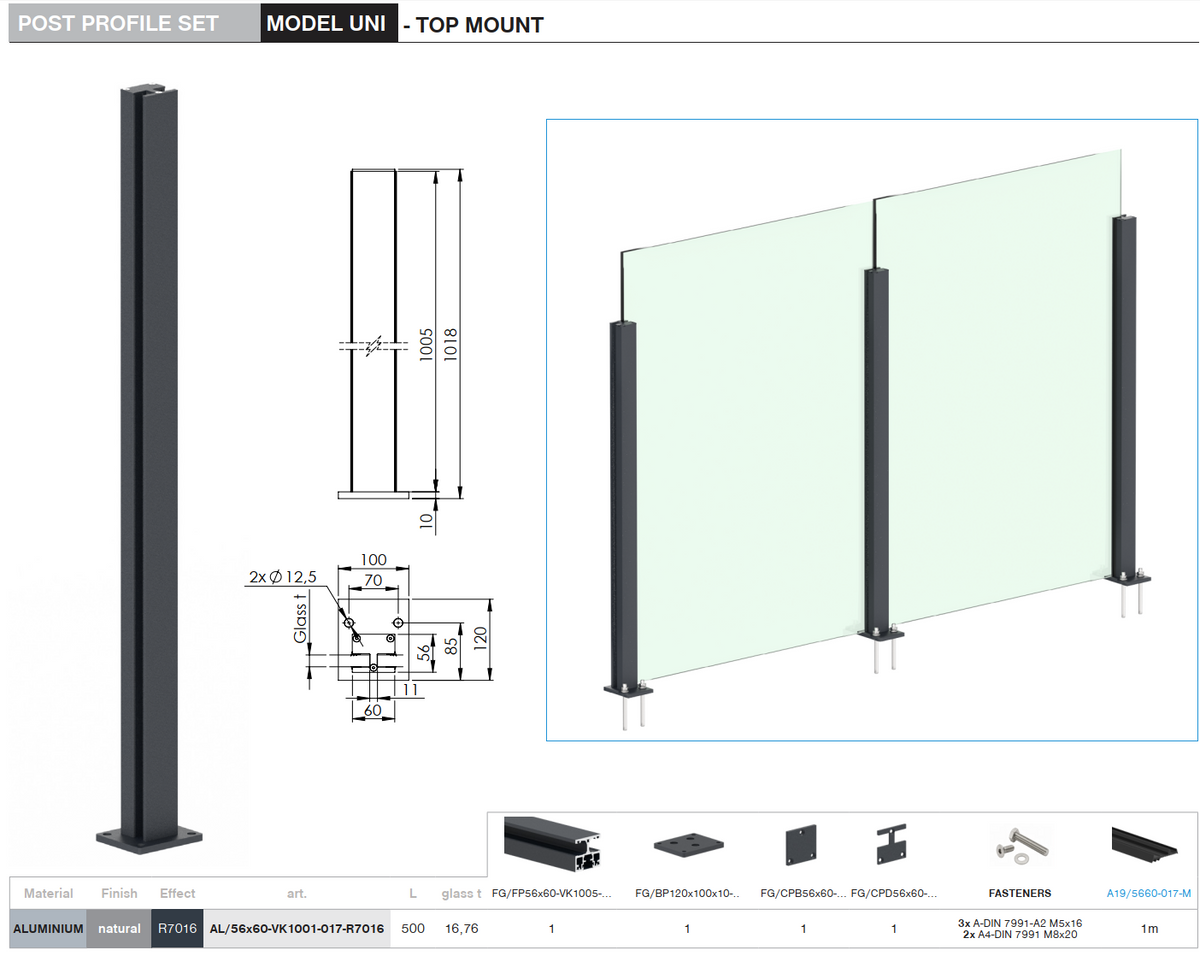

Set Contents
Aluminium post profile 56×60 mm – 1000 mm (product code FG/FP56x60-VK1000-R7016).
Stainless steel anchoring plate/flange (product code FG/BP120x100x10-R7016).
Intermediate cover (product code FG/CPD56x60-R7016).
Rubber gasket for 16.76 mm glass (product code A19/5660-017-M).
Stainless steel fasteners.
Advantages
Complete solution – post, mounting, covers, and gasket in one set.
Can be used an intermediate or end post.
Easy and quick installation without welding.
Replacement of damaged parts – easy disassembly and reassembly without special tools.
No need for regular painting – aluminum does not corrode.
Minimal maintenance – regular cleaning is sufficient.
Parameters
Parts of set
Aluminum Post Profile 56 × 60 mm - 1.0 m - Anthracite RAL 7016 FG/FP56x60-VK1005-R7016
Aluminium anchor plate for post 56x 60, top mounting - Anthracite RAL 7016 FG/BP120x100x10-R7016
Aluminium continuous post cover 56x60 - Anthracite RAL 7016 FG/CPD56x60-R7016
Hexagon socket countersunk head screw, AISI304, M5x16 A-DIN 7991-A2 M5x16
Rubber gasket, post 56x60, glass 16.76 and 17.52 mm A19/5660-017-M
Hexagon socket countersunk head screw, AISI316, M8x20 A4-DIN 7991 M8x20
