Aluminum fence adapter for 20 mm infills and for façade system, 25 x 25 – 6.0 m – black RAL 9005

Aluminum fence adapter for 20 mm infill and for façade system, 25 x 25 – 6.0 m – black RAL 9005

Product code: FG/AL20U-6000-R9005.

Material

• Extruded aluminum EN AW-6063-T6.
• High resistance to corrosion, moisture, and weather conditions.

Surface finish

• Powder coating with fine texture, shade black RAL 9005.
• Modern matte appearance, long-term color fastness, and UV stability.

Dimensions

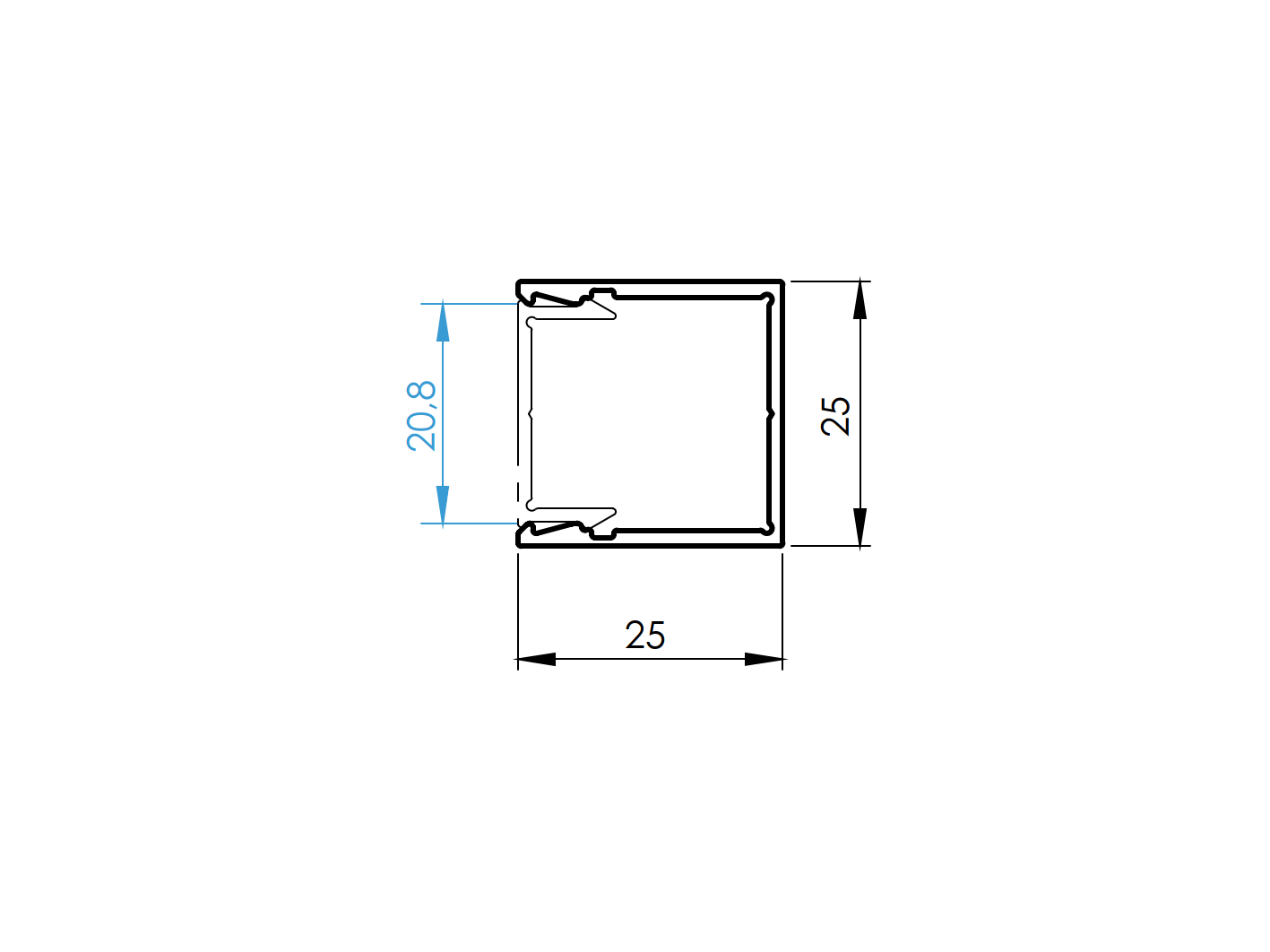

• Adapter cross-section: 25 x 25.
• Profile length: 6000 mm (6.0 m).
• Can be shortened as needed or supplied in other length variants.

Installation and compatibility
• Screw-fastened fence and façade mounting system – quick installation without welding.

• Easy disassembly and replacement of individual parts during modifications or after damage.

• Allows easy anchoring of slats or other 20 mm infills, with possible spacing overlap by a narrow Click-lock strip (product code FG/PC20x9...);

   visible anchoring screws.

• Use as a load-bearing profile for vertical anchoring of fence slats, as well as for reinforcing horizontally anchored slats of longer fence sections, with overlap by Click-lock narrow strip.

• Interior facade system: use as a vertical facade profile when using a click-lock connector (product code A19/25x25-R7016, or A19/45x25-R7016),

  also in combination with vertical façade profiles (product code FG/AL25x6...), also in combination with vertical façade profiles (product code FG/AL40U...),

  it can also be used as a load-bearing façade profile.

• Compatible with Umakov profiles and accessories (posts, cover strips, end profiles, A2 fastening material).

• Accessories: stainless steel A2 fastening material.

Advantages
• Easy replacement or removal of individual parts during maintenance or of damaged parts.
• No need for additional surface treatment – durable powder coating.
• Quick assembly with a bolted system – saving both time and costs.

• Minimal maintenance – regular cleaning is sufficient.
