Catalog

ZN/FR-CLG-N-SET-PRO

Galvanized Cantilever Sliding Gate Frame 6x2.125 m, Unwelded, with Tensioner - Natural - SET - PRO

Name: Galvanized Cantilever Sliding Gate Frame 6x2.125 m, Unwelded, with Tensioner - Natural - SET - PRO
Brand: umakovshop.com
SKU: ZN/FR-CLG-N-SET-PRO
Price: 712.45 EUR
Availability: InStock

Materiál: Oceľ, Povrchová úprava: Zinok, Vzhľad: Natural, L: 6000

€712,45

without VAT

€854,94

with VAT

Stock availability

SK Krompachy 18

SK Banská Bystrica 0

SK Bratislava R1 0

SK Senec 0

Contact

For more information, please contact our sales:

lubomir.petruska@umakov.sk

+421915093533 +393483490444

Description

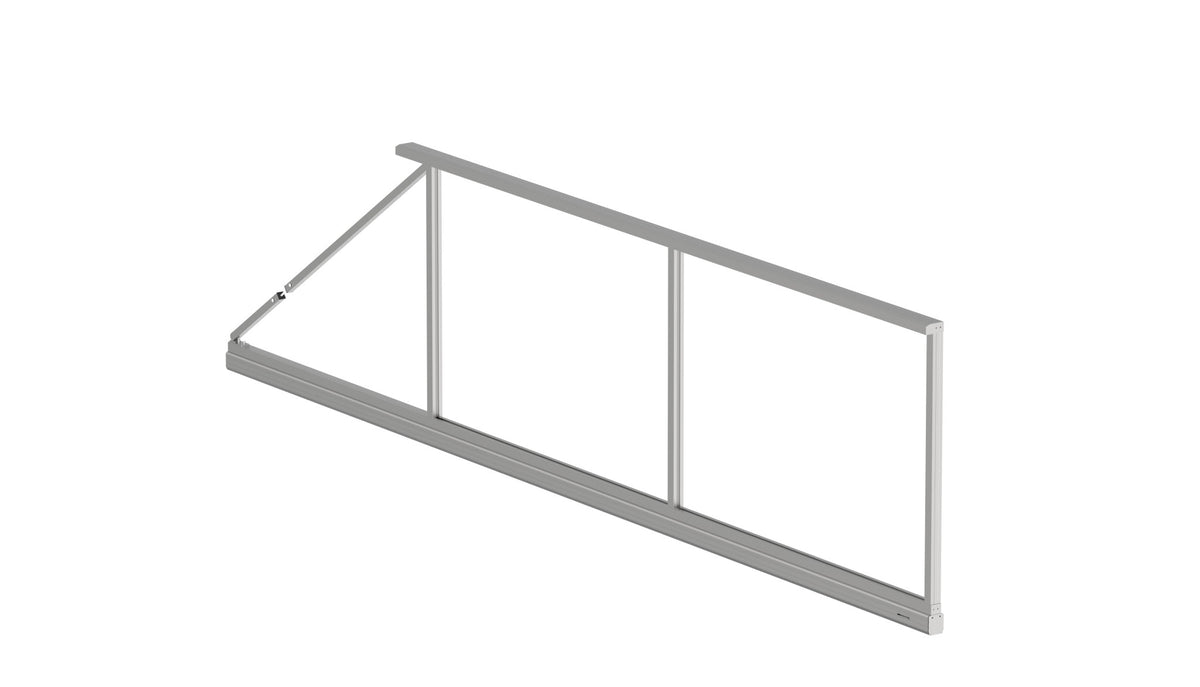

Galvanized self-supporting sliding gate frame 6 × 2.125 m, unwelded, with tensioner - Natural - SET - PRO

Product code: ZN/FR-CLG-N-SET-PRO

The modern steel, galvanized, unwelded frame of a self-supporting sliding gate represents a professional solution for property access without the need for a bottom track. Thanks to its self-supporting design, the gate moves above the ground, eliminating problems with dirt, freezing, or track wear. It is suitable for intensive use even in demanding climatic conditions.
The frame is made of high-quality galvanized steel profiles 60×40×2 mm, which, after welding, ensure high strength and corrosion resistance with the option of additional painting. The structure is designed for long-term and reliable operation.
The main advantage is the universal frame, ready for fitting your own infill according to the desired appearance, level of privacy, or architectural style.

Gate dimensions
The maximum gate width is 6000 mm, the maximum height is 2125 mm, and the clear passage width is approximately 4500 mm.
The system is designed a self-supporting gate with a galvanized steel C-profile 60×40 mm. The frame is ready for fitting an individually chosen infill according to customer requirements.

Why choose this PRO gate frame?
If you are looking for a solid, modern, reliable, and professional self-supporting sliding gate solution with the option of your own infill, this system represents a long-term advantageous investment. The PRO version offers a robust construction, high-quality components, high stability, smooth operation, and flexibility in creating the entrance design according to individual requirements.

Key competitive advantage
Unlike classic track systems, this frame is designed for a self-supporting gate, which offers: trouble-free operation even in winter without snow and dirt in the track, minimal maintenance without cleaning the running track, quiet and smooth gate movement, high reliability in daily use, a strong welded frame structure, easy infill installation without welding, the possibility of adjusting the infill directly on site, the possibility of disassembling the infill, components for reliable and long-term operation.

Technical parameters
max. gate width: 6000 mm
clear passage width: approx. 4500 mm
max. height: 2125 mm
galvanized steel C-profile: 60×60 mm
frame profile: 60×40×2 mm
design: unwelded
surface finish: galvanizing – Natural

Customizable flexibility without extra charges
The gate frame can be easily adjusted in width and height directly on site by shortening the profiles. This solution significantly reduces the costs of individual production and at the same time allows for the installation of infill according to your own requirements.

Complete solution in one PRO set
Supplied: galvanized profiles 60×40 mm for frame welding, bottom guide, self-supporting galvanized C-profile 60×60 mm, aluminum guiding top profile UG54x50 in Anthracite finish anchored via AL40U in Anthracite finish, nylon wheel with bracket, top stop, lightweight nylon racks for sliding into the bottom bracket, including tensioner.
Universal use
The self-supporting sliding gate frame is suitable for family homes, company premises, industrial areas, and commercial operations. Thanks to the possibility of installing your own infill, it provides maximum flexibility in creating an entrance according to individual requirements and the architectural solution of the building.

Advantages
complete PRO set of self-supporting gate frame,
stable construction,
possibility of installing your own infill according to individual requirements,
high corrosion resistance,
possibility of additional painting,
easy subsequent infill installation without welding,
possibility of custom dimension adjustment,
high stability and long service life of the structure,
smooth and quiet gate operation,
modulár system with the possibility of expansion with compatible fence panels.
